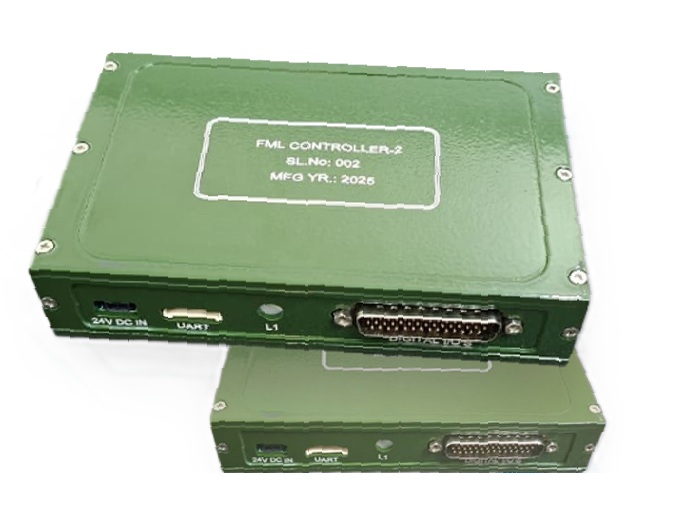

Customized Controller for Fluid Medium Laser
Ajitek Tech Solutions Pvt Ltd offers a high-performance Customized Controller for Fluid Medium Laser Applications, engineered for precision control, real-time processing, and reliable operation in demanding industrial and research environments. Built on a powerful FPGA and ARM computing architecture, the controller provides ultra-low latency control, high-speed sensor acquisition, multi-protocol communication, and extensive data logging capabilities for fluid medium laser systems.
Key Features
- FPGA + ARM Hybrid Architecture for deterministic real-time control and high-speed processing
- 16 High-Speed Photo Sensor Interfaces supporting MSPS data acquisition
- Multi-Protocol Communication with RS232/RS422, Ethernet, USB, SPI, I²C, and UART support
- Comprehensive Analog & Digital I/O for seamless integration with pumps, valves, sensors, and actuators
- 16-Channel Precision DAC Outputs supporting bipolar control signals from -10V to +10V
- Real-Time Operating System Support with interrupt latency below 10 µs
- Integrated Data Logging using SD Card and Flash Memory for operational analysis and diagnostics
- Industrial-Grade Reliability Features including Watchdog Timer, NVRAM, Elapsed Time Indicator, and Temperature Monitoring
- Hermetically Sealed Air-Cooled Design for operation in harsh industrial environments
- Emergency Control Functions ensuring safe and dependable system operation
Hardware Specifications
| Parameter | Specification |
|---|---|
| Processor | FPGA |
| Co-Processor | ARM Processor |
| Sensor Interface | 16 × Photo Sensor (MSPS) |
| Serial Ports | 3 × RS232 / RS422 |
| Ethernet | 1 × 10/100/1000BASE-T |
| Analog Interface | 8 Channels (0-10V / 4-20mA / RTD / Thermocouple) In/Out |
| Digital Interface | 4 Channels (I2C, SPI, UART) |
| DAC Outputs | 16 Channels (-10V to +10V) |
| USB Ports | 2 × USB 2.0 / USB 3.0 |
| GPIO | 0-5V |
| Emergency Control | Supported |
| Analog Data Logging | SD Card, Flash Memory |
| NVRAM / Watchdog / ETI / TPM | 512 kB Non-Volatile RAM |
| Watchdog Timer | Software Programmable |
| Elapsed Time Indicator (ETI) | Supported |
| Temperature Monitoring | Integrated Temperature Sensors |
| Operating System Support | RT Linux / RTOS (Interrupt Latency < 10 µs) |
| Cooling | Air Cooled |
| Packaging | Hermetically Sealed |
The Customized Controller for Fluid Medium Laser Systems from Ajitek Tech Solutions Pvt Ltd combines deterministic FPGA performance with ARM-based processing flexibility, delivering precise control, rapid response, extensive connectivity, and rugged industrial reliability for mission-critical laser applications.
