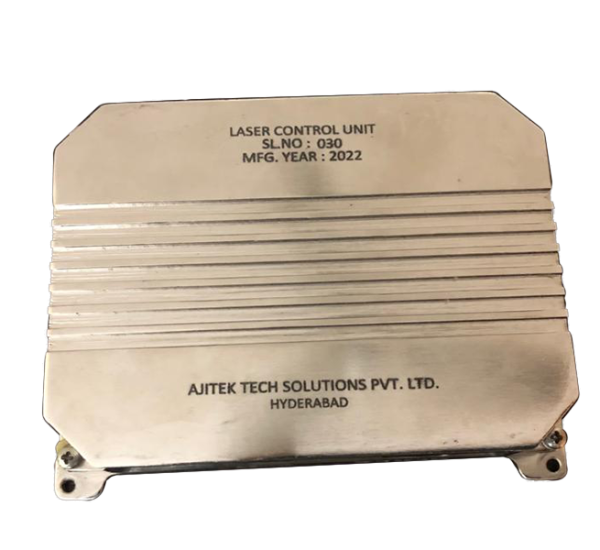

Laser Controller Card
The Laser Control Card (STM32H743VIT6) are high-end development platforms for the Arm® Cortex®-M7-based microcontrollers.Laser Control Card provide access to all the STM32 peripherals for user applications and include an embedded ST-LINK debugger/programmer. hardware features help to develop applications and evaluate all the peripherals.

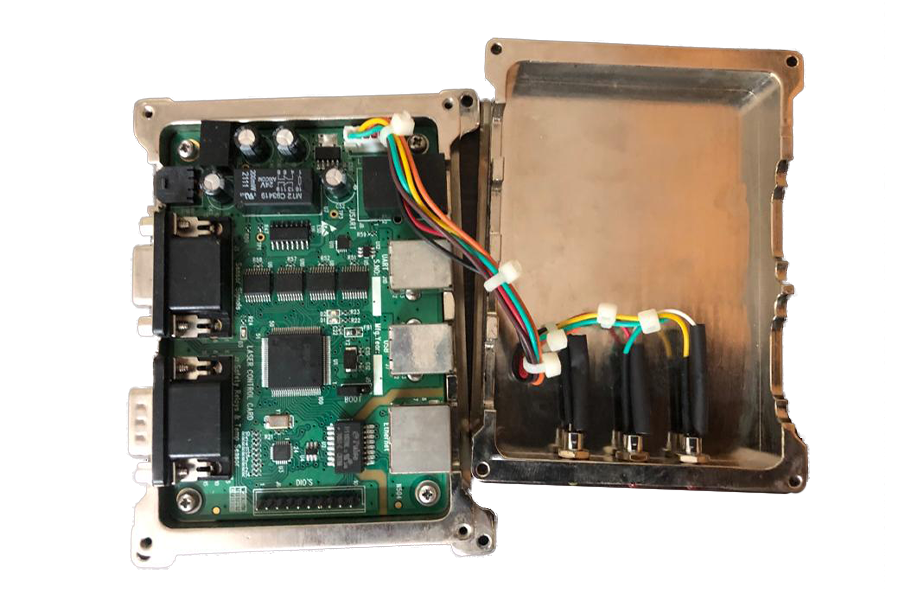

Hardware Specification
- One STM32H743VIT6 Arm® Cortex® microcontrollers.
- 2 Mbytes of Flash memory. 1 Mbyte of RAM.
- One Ethernet RJ45. One USB to UART Interface.
- One USB interface.
- Four resistance-to-digital converter (RTD) Sensors.
- One Relay Interface.
- Four Humidity Sensor Controls for External Devices.
- JTAG/SWD and ETM trace.
- nReset & on Board LEDs.
- Three DC- DC Converters.
- One Power Jack (+24V).
Our Laser Controller Card offers multi-channel synchronization capabilities. This feature is crucial in fields such as laser imaging, laser projection, and holography, where precise temporal alignment of laser beams is essential for seamless operation. Despite its advanced capabilities, the Laser Controller Card is designed to be user-friendly, providing engineers with intuitive interfaces and easy-to-use software. Additionally, the card’s programmability allows for customization, enabling users to adapt the card’s control algorithms and parameters to suit their specific laser applications.
Our Laser Controller Card finds applications across a wide range of industries, including aerospace, automotive, electronics, biotechnology, and more. Its adaptability allows it to be integrated into diverse laser systems, making it a key component in research laboratories, manufacturing facilities, and medical institutions worldwide.
We pride ourselves on providing exceptional technical support and assistance throughout your integration process and beyond. Our knowledgeable team of experts is available to address your questions, provide guidance, and ensure a successful implementation of our laser controller card.
Experience unparalleled control and integration with the Laser Controller Card from Ajitek Tech Solutions Pvt Ltd. Enhance the performance, precision, and versatility of your laser systems with our cutting-edge solution.
