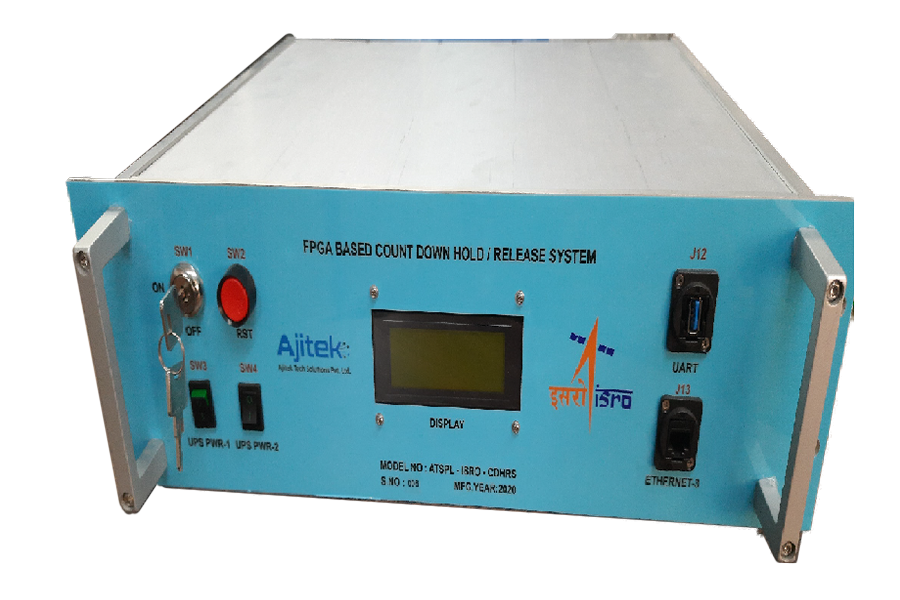

FPGA-Based Count Down Hold / Release System
Ajitek Tech Solutions Pvt Ltd is Introducing the Zynq FPGA Based Dual Ethernet System. Zynq FPGA-based dual Ethernet systems have gained significant prominence in the networking industry, providing a powerful combination of FPGA programmable logic and embedded processing capabilities. These systems are capable of delivering high-performance networking solutions for a wide range of applications, from industrial automation and telecommunications to automotive and data centers.
In the ever-evolving landscape of networking technology, Ajitek based Zynq FPGA-based dual Ethernet systems have emerged as game-changers. These cutting-edge systems combine the power of FPGA programmable logic with the flexibility of embedded processing to deliver unparalleled high-performance networking solutions. With a wide range of applications, from industrial automation and data centers to automotive and telecommunications, let’s explore the transformative capabilities of our Zynq FPGA-based dual Ethernet systems.
Hardware Specification
- FPGA – Xilinx Make Device Zynq-7 XC7Z030-1FBG676I.
- DDR3 – One (256M X 16) Using MT41K256M16TW-107 XIT:P from Micron.
- FLASH – One (16M X 16) Flash Memory using S29GL256P90TFIR20 from Spansion.
- Configuration – 1 No's of PROM Interface Using S25FL128SAGMFIR01 from Spansion.
- Ethernet Interface – 2 No's of 10/100/1000 Mbps Ethernet Interface using 88E1111-B2 BAB1I000 from Marvell.
- I/O's – 80 No's of Opto Isolated I/O's, 20 X 4 LCD Interface, USB JTAG Programming and On Board Reset.
- Unit Dimensions: 266.7 X 482.6 X 210 mm.
- Operating Temperature: -40°C to +85°C.
- Operating Power Supply: +28V.
Our Zynq FPGA-based dual Ethernet systems boast exceptional networking capabilities, enabling high-speed data transfer, real-time communication, and low-latency connections. With dual Ethernet interfaces, these systems can handle simultaneous data streams and complex networking tasks, making them ideal for demanding applications that require reliable and efficient data exchange.
From edge computing to industrial IoT and beyond, Zynq FPGA-based dual Ethernet systems offer the flexibility to adapt to diverse networking requirements. Designers can implement custom protocols, real-time data processing, hardware acceleration, and cryptographic functions within the FPGA fabric, making the system versatile enough to address a broad spectrum of networking challenges.
In the era of data breaches and cyber threats, data security is paramount. Zynq FPGA-based dual Ethernet systems can be equipped with advanced security features, including encryption, authentication, and secure booting, ensuring the confidentiality and integrity of data during transmission. Additionally, redundant networking configurations can be implemented to enhance system reliability in critical applications.
Our system provides scalability options, allowing you to add additional functionality and interfaces as your networking requirements evolve. You can leverage the programmable nature of the FPGA to accommodate future upgrades or integrate with other systems seamlessly.
Our experienced engineering team is ready to assist you with technical support, customization, and integration guidance.
Unlock the potential of high-performance networking and communication with the Zynq FPGA Based Dual Ethernet System from Ajitek Tech Solutions Pvt Ltd. Experience the flexibility, reliability, and scalability that our solution brings to your applications.
