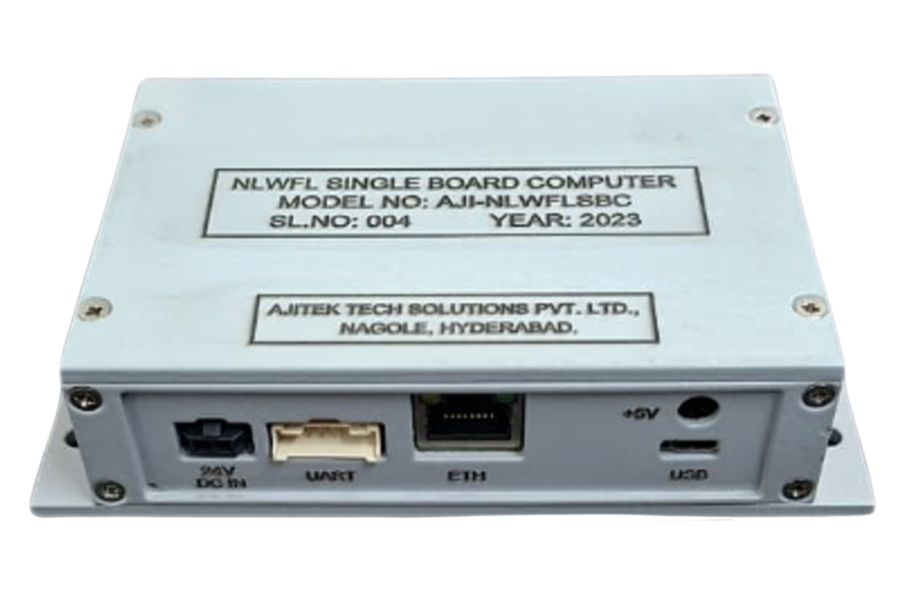

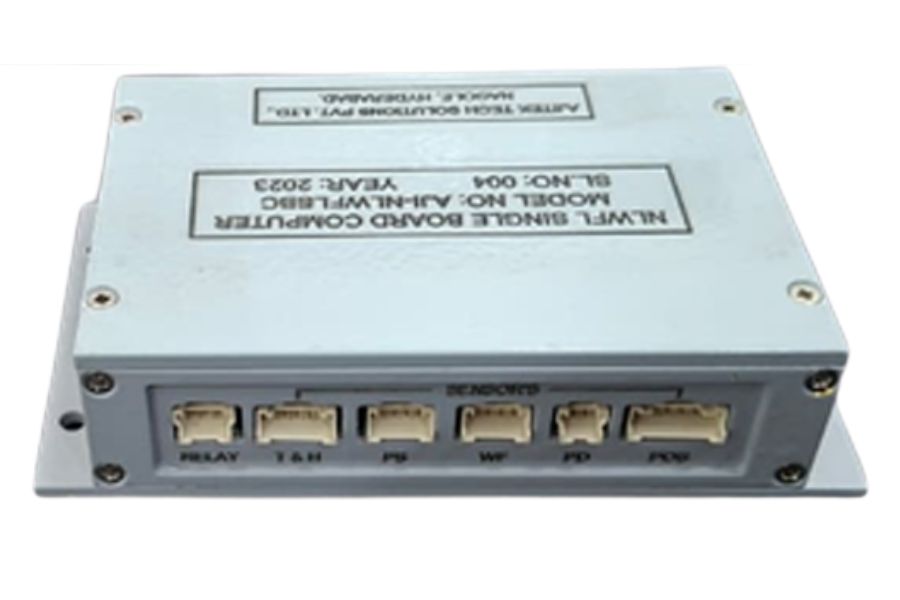

Laser Interface Control Card
Ajitek Tech Solutions Pvt Ltd offers the Laser Interface Control Card, a compact and high-performance embedded control platform designed for laser system integration, monitoring, signal conditioning, and real-time control applications. Built around a reliable ARM processor architecture, the controller provides seamless communication between laser subsystems, sensors, actuators, and host control systems.
The card features extensive digital and analog I/O capabilities, enabling precise command execution, data acquisition, status monitoring, and system diagnostics. With integrated ADC and DAC channels, Ethernet connectivity, USB/JTAG programming support, and industrial-grade reliability, the solution is ideal for defense, aerospace, scientific research, and industrial laser applications.
Key Features
- High-performance ARM-based embedded controller
- 24 programmable GPIO channels for flexible interfacing
- 12-channel ADC for real-time sensor acquisition
- 12-channel DAC for precision analog control outputs
- Ethernet communication for remote monitoring and control
- USB and JTAG support for programming and debugging
- Multiple status and indication LEDs for system health monitoring
- Compact footprint for embedded laser systems
- C language-based application development
- Reliable operation in mission-critical environments
- Easy integration with laser controllers, sensors, and external equipment
Hardware Specifications
| Parameter | Specification |
|---|---|
| Processor | ARM |
| Memory / Flash | 64 MB |
| GPIO Pins | 24 Channels |
| Ethernet | 1 Port |
| USB | 1 Port |
| USB / JTAG | 1 Port |
| Input Power | 24V DC |
| Programming Interface | JTAG / USB |
| Programming Selection | Manual Switch Interface |
| Status LEDs | 12 Nos. |
| Indication LEDs | 3 Nos. |
| ADC | 12-Channel |
| DAC | 12-Channel |
| Programming Language | C |
| Connector Type | Pin Headers |
| Dimensions (Max) | 80 mm × 40 mm × 30 mm |
