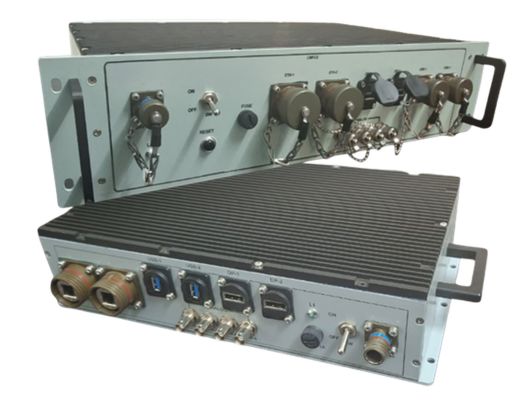

LWFCS (Laser Weapon Fire Control System)
Ajitek Tech Solutions Pvt Ltd offers the LWFCS (Laser Weapon Fire Control System), a rugged high-performance computing platform engineered for real-time target processing, weapon control, tracking, sensor integration, and mission-critical defense applications. Built on Intel® Xeon® or Intel® Core™ processor architectures with industrial-grade components, the system delivers exceptional reliability, computing power, and scalability in demanding operational environments.
Designed for integration with laser weapon systems, electro-optical sensors, tracking subsystems, and command-control networks, the LWFCS platform combines high-speed processing, multiple communication interfaces, and flexible expansion capabilities to support advanced battlefield and defense operations.
Key Features
- High-performance Intel® Xeon® E3 or Intel® Core™ i7 processing platform
- Rugged architecture with extended temperature support
- VME-based or modular embedded computing platform
- Multiple high-speed Ethernet interfaces for networked operations
- Expandable architecture through XMC, M.2, and Mini PCIe slots
- High-capacity DDR4 memory and SSD storage
- Multi-display support via VGA, HDMI, and DisplayPort interfaces
- Real-time control and data processing capabilities
- Front-panel accessible communication interfaces
- Optimized for defense, aerospace, tracking, and fire control applications
- Compact, scalable, and field-deployable design
Hardware Specifications
| Parameter | Specification |
|---|---|
| Computing Platform | 1 × SBC-XVB603 / SBC Kontron |
| Processor Options | Intel® Xeon® Processor E3-1505M (7th Generation) OR Intel® Core™ i7 11th Generation U-Series Processor |
| Temperature Support | Extended Temperature Support |
| Processor Upgrade | Higher Versions Acceptable |
| Display Interfaces | 2 × VGA / HDMI / DisplayPort |
| Expansion Slot | 1 × XMC Slot 1 × M.2 Key-B Slot SSD / WLAN / Other Expansion Modules 1 × M.2 Key-E Slot WLAN / Bluetooth / Other Expansion Modules 1 × M.2 Key-M Slot SSD Expansion |
| Form Factor | 6U VME 1 × Mini PCIe |
| Memory | 2 × 16 GB DDR4 SO-DIMM (32 GB Total) or Higher |
| Storage | 64 GB SSD or Higher |
| Input Voltage | 18V – 32V DC |
| Serial Communication | 2 × Serial Ports |
| External Display Output | 1 × External VGA |
| USB Ports | 2 × USB 3.0 |
| Ethernet Interfaces | 2 × 10/100/1000 Base-T Ethernet Ports |
| LAN Support | Gigabit Ethernet (GbE) |
| Front Access | Front-Panel Ethernet Access |
