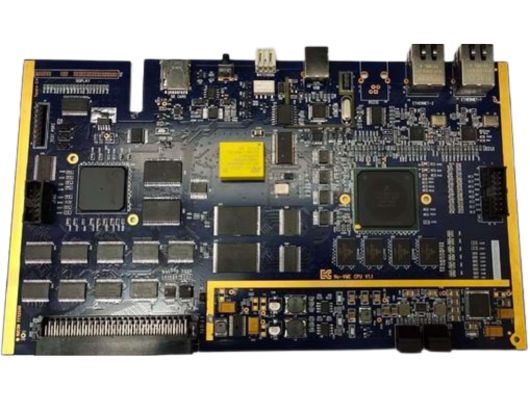

P1013 QORIQ PLC Main CPU
Ajitek Tech Solutions Pvt Ltd presents the P1013 QorIQ PLC Main CPU, a high-performance embedded processing platform designed for industrial automation, defense systems, aerospace applications, real-time control, and mission-critical computing environments. Built around the powerful Freescale QorIQ P1013 processor and Microsemi IGLOO2 FPGA, the controller delivers exceptional processing performance, deterministic operation, and high reliability in harsh operating conditions.
The platform combines advanced communication interfaces, industrial-grade memory architecture, FPGA-based programmable logic, and VME bus connectivity to support complex control, monitoring, and data acquisition applications. Designed for extended temperature operation and continuous field deployment, the P1013 QorIQ PLC Main CPU offers a robust foundation for next-generation embedded control systems.
Key Features
- Powerful 32-bit Freescale QorIQ P1013 Processor
- Integrated Microsemi IGLOO2 FPGA for hardware acceleration and custom logic implementation
- High-speed DDR3 Memory Architecture
- Non-volatile memory support including Flash, SRAM, and NVSRAM
- Multiple serial communication interfaces including RS232, RS422, and RS485
- Dual Ethernet interfaces for network redundancy and real-time communication
- USB and SD Card support for data transfer and storage expansion
- Industrial-grade VME Bus Interface for system integration
- On-board watchdog timer and reset circuitry for enhanced system reliability
- Wide operating temperature range from -40°C to +85°C
- Compact 12-layer PCB design optimized for rugged environments
- Designed for continuous operation in demanding defense and industrial applications
Hardware Specifications
| Parameter | Specification |
|---|---|
| Processor | P1013NXE2LFB 32-Bit QorIQ Processor (Freescale Semiconductor) |
| FPGA | M2GL025-FGG484I IGLOO2 FPGA (Microsemi Corporation) |
| Memory Interfaces | DDR3, NVSRAM, SRAM, Flash |
| Serial Communication | RS232 / RS422 / RS485 |
| Ethernet | Dual Ethernet Interface |
| USB Interface | 1 × USB |
| SD Card Interface | Supported |
| VME Bus Interface | Supported |
| Reset Interface | On-Board Reset Circuitry |
| Watchdog Timer | Integrated Watchdog Timer Interface |
| Operating Temperature | -40°C to +85°C |
| Input Power Supply | +5V DC |
| Board Dimensions | 233.33 mm × 160 mm |
| No of Layers | 12-Layer |
